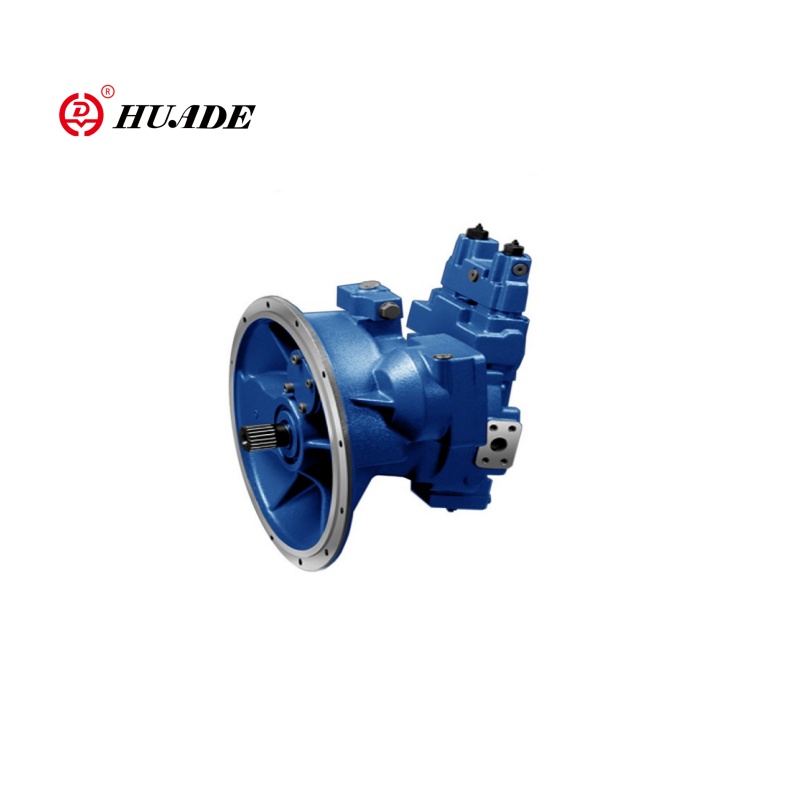

Axial piston variable pump A8V is a high-performance hydraulic pump, which is widely used in complex hydraulic systems that require large flow, high pressure, variable displacement and dual pumps working together. A8V adopts dual pump integrated design, which can save space, simplify piping, and is suitable for compact equipment layout. Pump A8V adjusts displacement through pressure, flow or electric proportional valve to achieve intelligent energy saving. The plunger pump structure is resistant to high pressure and has a long life, suitable for continuous heavy load conditions.
Product parameter of Axial Piston Variable Pump A8V
| Technical Data | |
| Operation Pressure(Pressure at port A or B) | |
| Nominal pressure | Pn=35MPa |
| Peak pressure | Pmax=40MPa |
| Absolute pressure on the suction inlet S | |
| Pabsmin | 0.08MPa |
| Pabsmax | 0.2MPa |
| Fluid Temperature Range | |
| tmin | -25℃ |
| tmax | +80℃ |
| Optimum Operating Viscosity Range | |
| Vmin | 10mm2/s |
| Vmax | (for short periods) 100mm2/s |
| Optimum Operating Viscosity: | |
| Vopt | 16-36mm2/s |
Product Feature And Application of Axial Piston Variable Pump A8V
▶Two variable pumps in a common housing, the splitter box an SAE flange for direct mounting on to the prime mover and the control device-usually summation HP control
▶Flow is proportional to speed by change the swivel angle
Special Features:
▶The various design options with auxiliary drive and the possibility of multi-circuit control allow optimum matching to individual drive applications.
Application:
Axial Piston Variable Pump A8V is mainly used in engineering machinery, mining and metallurgical equipment, shipbuilding and marine engineering, industrial production lines.

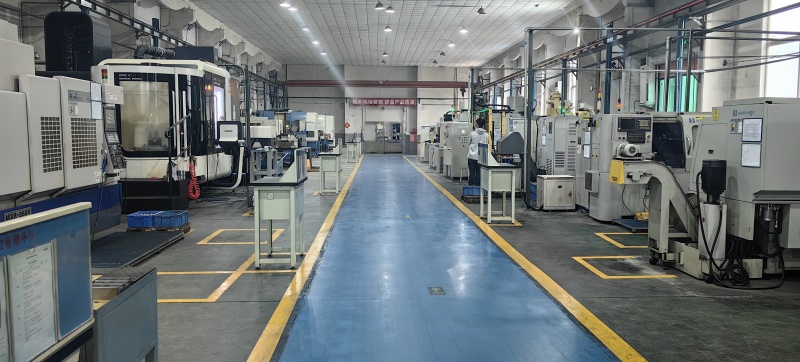

Production workshop
In order to meet production requirements, Luck has introduced advanced production equipment from all over the world. The hydraulic pumps produced by Luck Hydraulic are of reliable quality and stable performance.
